STW35N65M5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STW35N65M5 Features

* Type STB35N65M5 STF35N65M5 STI35N65M5 STP35N65M5 STW35N65M5 VDSS @ TJMAX 710 V 710 V 710 V 710 V 710 V RDS(on) max. ID < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω 27 A 27 A(1) 27 A 27 A 27 A 1. Limited only by maximum temperature allowed

* Worldwide best RDS(on)

* area

* High

STW35N65M5 General Description

' These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among sili.

STW35N65M5 Datasheet (703.09 KB)

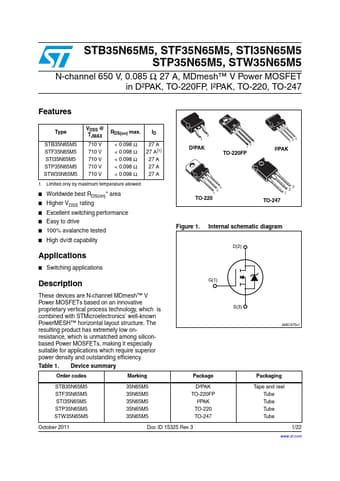

STW35N65M5 Datasheet Preview — Preview of STW35N65M5 PDF

Datasheet Details

Part number:

STW35N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

703.09 KB

Description:

N-channel power mosfet.
STB35N65M5, STF35N65M5, STI35N65M5 STP35N65M5, STW35N65M5 N-channel 650 V, 0.085 Ω, 27 A, MDmesh™ V Power MOSFET in D²PAK, TO-220FP, I²PAK, TO-220, TO.
