STW65N045M9-4 - N-channel Power MOSFET

Datasheet Summary

Description

This N-channel Power MOSFET is based on the most innovative super-junction MDmesh M9 technology, suitable for medium/high voltage MOSFETs featuring very low RDS(on) per area.

The silicon based M9 technology benefits from a multi-drain manufacturing process which allows an enhanced device structure.

Features

  • Gate(4) Driver source(3) 2 34 1 TO247-4 Drain(1, TAB) Power source(2) ND1TPS2DS3G4 Order code VDS RDS(on) max. ID STW65N045M9-4 650 V 45 mΩ 54 A.
  • Worldwide best FOM RDS(on).
  • Qg among silicon-based devices.
  • Higher VDSS rating.
  • Higher dv/dt capability.
  • Excellent switching performance thanks to the extra driving source pin.
  • Easy to drive.
  • 100% avalanche tested.

📥 Download Datasheet

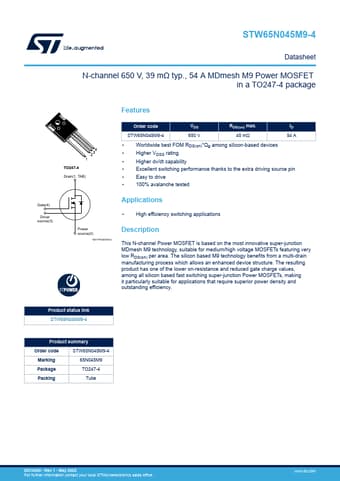

Datasheet preview – STW65N045M9-4

Datasheet Details

Part number STW65N045M9-4
Manufacturer STMicroelectronics
File Size 351.44 KB
Description N-channel Power MOSFET
Datasheet download datasheet STW65N045M9-4 Datasheet
Additional preview pages of the STW65N045M9-4 datasheet.
