STW69N65M5 Datasheet, Mosfet, INCHANGE

STW69N65M5 Features

  • Mosfet
  • Drain Current ID= 58A@ TC=25℃
  • Drain Source Voltage- : VDSS= 650V(Min)
  • Fast Switching Speed
  • 100% avalanche tested
  • Minimum Lot-to-Lot variatio

PDF File Details

Part number:

STW69N65M5

Manufacturer:

INCHANGE

File Size:

371.28kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

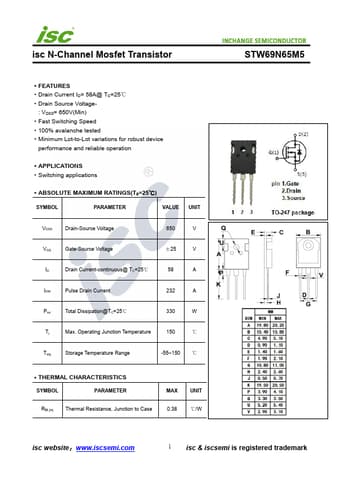

Datasheet Preview: STW69N65M5 📥 Download PDF (371.28kb)
Page 2 of STW69N65M5

STW69N65M5 Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage
