STW69N65M5-4 - N-CHANNEL MOSFET

STMicroelectronics

STW69N65M5-4 Datasheet Preview — Preview of STW69N65M5-4 PDF

Datasheet Details

Part number	STW69N65M5-4
Manufacturer	STMicroelectronics ↗
File Size	450.12 KB
Description	N-CHANNEL MOSFET
Datasheet	STW69N65M5-4-STMicroelectronics.pdf

STW69N65M5-4 Product details

Description

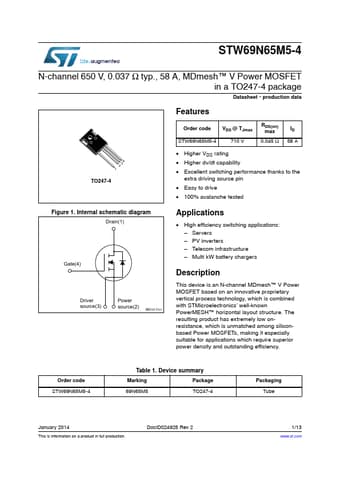

Driver source(3) Power source(2) AM10177v1 This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.The resulting product has extremely low onresistance, which is unmatched among siliconbased Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiency.Order code STW69N65M5-4

Features

Order code VDS @ TJmax STW69N65M5-4 710 V RDS(on) max 0.045 Ω ID 58 A.
Higher VDS rating.
Higher dv/dt capability.
Excellent switching performance thanks to the extra driving source pin.
Easy to drive.
100% avalanche tested Figure 1. Internal schematic diagram Drain(1) Gate(4).
