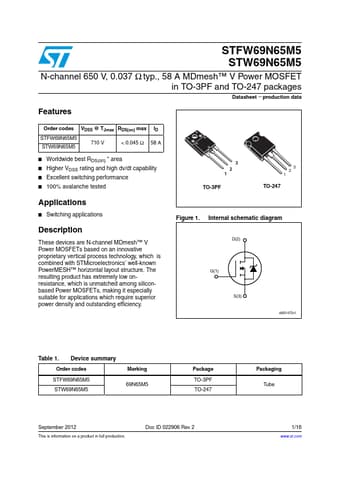

STW69N65M5 Datasheet, Mosfet, STMicroelectronics

STW69N65M5 Features

• Mosfet Order codes VDSS @ TJmax RDS(on) max ID STFW69N65M5 STW69N65M5 710 V < 0.045 Ω 58 A
• Worldwide best RDS(on)
• area
• Higher VDSS rating and high dv/dt capa

PDF File Details

Part number:

STW69N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

645.47kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined

STW69N65M5 Application

• Applications
• Switching applications Description These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary ve
