N-CHANNEL MOSFET

STW62NM60N Features

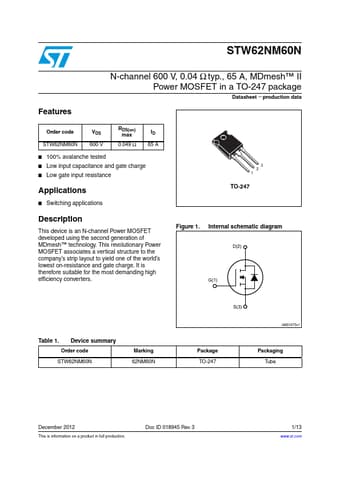

* N-channel 600 V, 0.04 Ω typ., 65 A, MDmesh™ II Power MOSFET in a TO-247 package Datasheet

* production data Order code STW62NM60N VDS 600 V RDS(on) max 0.049 Ω ID 65 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

STW62NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .
