STW65N60DM6 - N-channel Power MOSFET

Datasheet Summary

Description

These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fast-recovery diode series.

Features

  • Order code VDS RDS(on) max. ID STW65N60DM6 STWA65N60DM6 600 V 71 mΩ 46 A.
  • Fast-recovery body diode.
  • Lower RDS(on) per area vs previous generation.
  • Low gate charge, input capacitance and resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.
  • Zener-protected.

📥 Download Datasheet

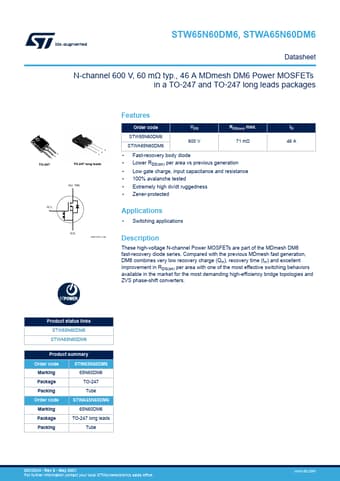

Datasheet preview – STW65N60DM6
