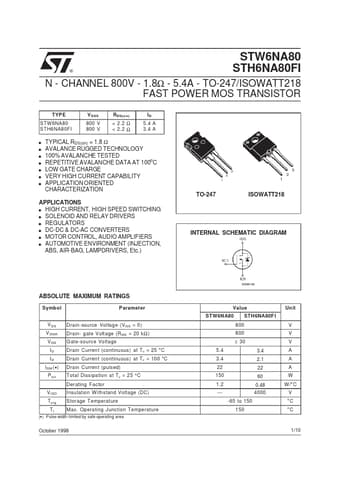

STW6NA80 STH6NA80FI
N - CHANNEL 800V - 1.8Ω - 5.4A - TO-247/ISOWATT218 FAST POWER MOS TRANSISTOR
TYPE STW 6NA80 STH6NA80FI
s s s s s s s
V DSS 800 V 800 V
R DS(on) < 2.2 Ω < 2.2 Ω
ID 5.4 A 3.4 A
TYPICAL RDS(on) = 1.8 Ω AVALANCE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE VERY HIGH CURRENT CAPABILITY APPLICATION ORIENTED CHARACTERIZATION
3 2 1
3 2 1
TO-247
ISOWATT218
APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc.
STW6NA80 Datasheet
