STW6N95K5

Power MOSFETs

STMicroelectronics

STW6N95K5 Features

* Type STD6N95K5 STF6N95K5 STP6N95K5 STW6N95K5

* VDSS RDS(on)max ID PW 90 W 3 1 2 3 950 V < 1.25 Ω 5A 25 W 90 W TO-220 TO-220FP 1 2 DPAK worldwide best RDS(on) Worldwide best FOM (figure of merit) Ultra low gate charge 100% avalanche tested Zener-protected Figu

STW6N95K5 General Description

SuperMESH 5™ is a revolutionary avalancherugged very high voltage Power MOSFET technology based on an innovative proprietary www.DataSheet4U.com vertical structure. The result is a drastic reduction in on-resistance and ultra low gate charge for applications which require superior power density and .

STW6N95K5 Datasheet (468.42 KB)

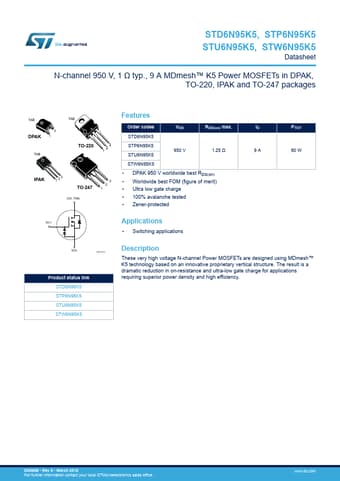

STW6N95K5 Datasheet Preview — Preview of STW6N95K5 PDF

Datasheet Details

Part number:

STW6N95K5

Manufacturer:

STMicroelectronics ↗

File Size:

468.42 KB

Description:

Power mosfets.
STD6N95K5, STF6N95K5 STP6N95K5, STW6N95K5 N-channel 950 V, 1 Ω, 5 A TO-220, TO-220FP, TO-247, DPAK Zener-protected SuperMESH 5™ Power MOSFET Prelimina.
