STW60NM50N - N-CHANNEL MOSFET

Datasheet Summary

Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

Features

  • 3 2 1 TO-247 Order code VDSS (@Tjmax) RDS(on) max ID STW60NM50N 550 V.

📥 Download Datasheet

Datasheet preview – STW60NM50N

Datasheet Details

Part number STW60NM50N
Manufacturer STMicroelectronics
File Size 498.24 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet STW60NM50N Datasheet
Additional preview pages of the STW60NM50N datasheet.

📁 Similar Datasheet

  • STW60NM50N - N-Channel MOSFET (INCHANGE)
  • STW60N10 - N-CHANNEL MOSFET (ST Microelectronics)
  • STW60NE10 - N-CHANNEL MOSFET (ST Microelectronics)
  • STW62NM60N - N-Channel MOSFET (INCHANGE)
  • STW69N65M5 - N-Channel MOSFET (INCHANGE)
  • STW6N95K5 - N-Channel 900V Power MOSFET (VBsemi)
  • STW6NA80 - N-CHANNEL MOSFET (ST Microelectronics)
  • STW6NA90 - N-CHANNEL MOSFET (ST Microelectronics)
  • STW6NB100 - N-CHANNEL MOSFET (ST Microelectronics)
  • STW6NB90 - N-CHANNEL MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

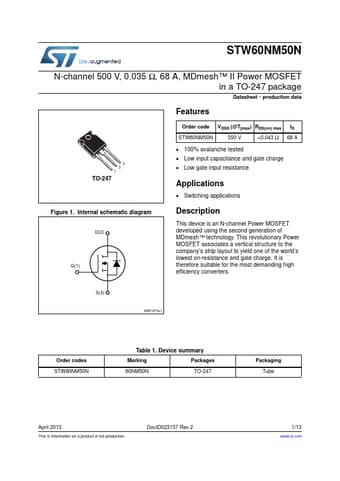

STW60NM50N N-channel 500 V, 0.035 Ω, 68 A, MDmesh™ II Power MOSFET in a TO-247 package Datasheet - production data Features 3 2 1 TO-247 Order code VDSS (@Tjmax) RDS(on) max ID STW60NM50N 550 V <0.043 Ω 68 A • 100% avalanche tested • Low input capacitance and gate charge • Low gate input resistance Applications • Switching applications Figure 1. Internal schematic diagram '  *  Description This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters. 6  $0Y Order codes STW60NM50N Table 1.
