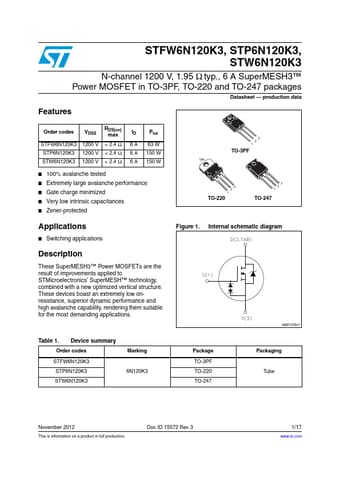

STW6N120K3 Datasheet, Mosfet, STMicroelectronics

STW6N120K3 Features

• Mosfet Order codes VDSS RDS(on) max ID Ptot STFW6N120K3 1200 V < 2.4 Ω 6 A 63 W STP6N120K3 1200 V < 2.4 Ω 6 A 150 W STW6N120K3 1200 V < 2.4 Ω 6 A 150 W
• 100% avalanche tested <

PDF File Details

Part number:

STW6N120K3

Manufacturer:

STMicroelectronics ↗

File Size:

400.38kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a

STW6N120K3 Application

• Applications
• Switching applications Description These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectron
