STWA12N120K5 Datasheet, Mosfet, STMicroelectronics

STWA12N120K5 Features

  • Mosfet Order codes VDS RDS(on) max. ID PTOT STH12N120K5-2 STP12N120K5 1200 V STW12N120K5 0.69 Ω 12 A 250 W STWA12N120K5 TO-247 3 2 1 3 2 1 TO-247 long leads Figure 1: Internal schem

PDF File Details

Part number:

STWA12N120K5

Manufacturer:

STMicroelectronics ↗

File Size:

590.59kb

Download:

📄 Datasheet

Description:

N-channel power mos mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical

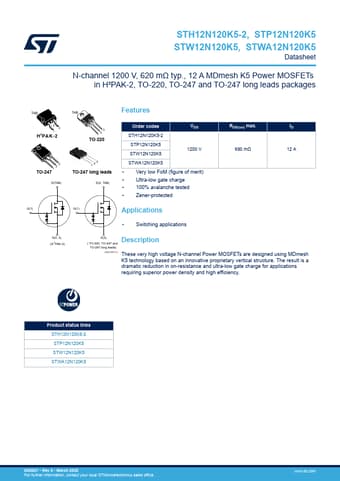

Datasheet Preview: STWA12N120K5 📥 Download PDF (590.59kb)

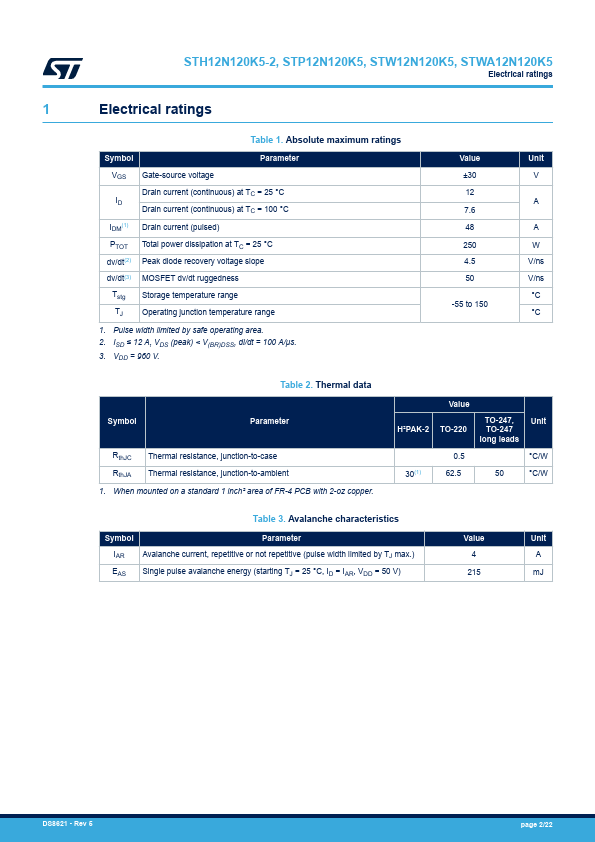

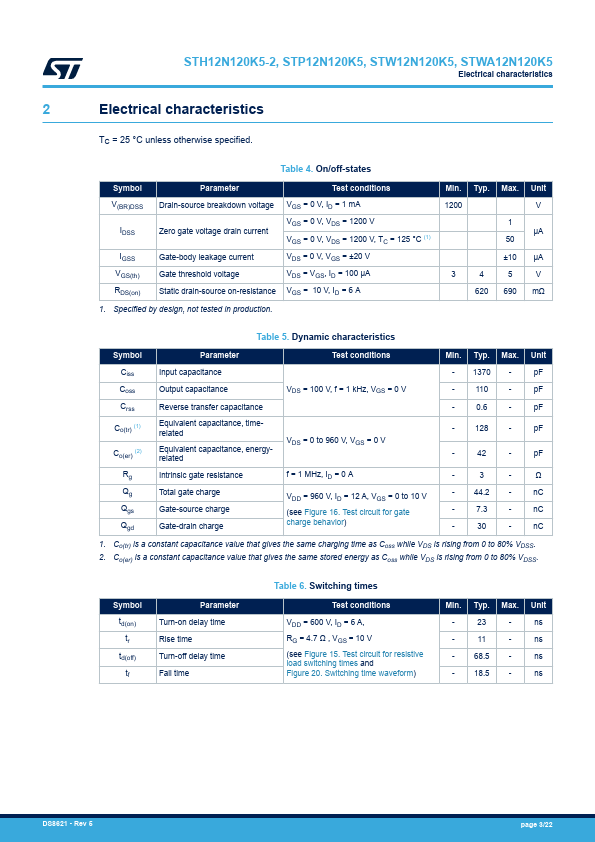

Page 2 of STWA12N120K5 Page 3 of STWA12N120K5

STWA12N120K5 Application

  • Applications
  • Switching applications Description These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology b
