* Order code STW3N170 STWA3N170 VDS 1700 V RDS(on) max. 13 Ω ID 2.6 A PTOT 160 W
* Intrinsic capacitances and Qg minimized
* High speed switching
* 100% avalanche tested Applications
* Switching applications Description This Power MOSFET is designed using the STMicroelectronics c
STWA3N170 Datasheet (257.42 KB)
STWA3N170
257.42 KB
N-channel power mosfet.

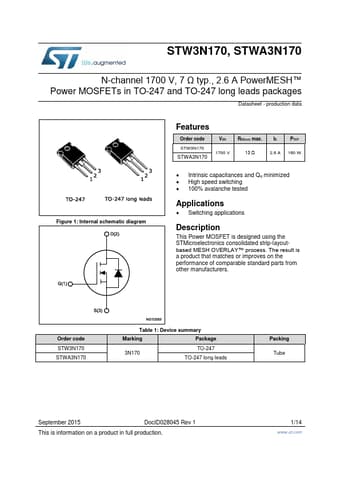

STW3N170, STWA3N170
N-channel 1700 V, 7 Ω typ., 2.6 A PowerMESH™ Power MOSFETs in TO-247 and TO-247 long leads packages
Datasheet - production data
.
