STWA20N95K5

N-CHANNEL MOSFET

STMicroelectronics

STWA20N95K5 Features

* 3 2 1 TO-247 long leads Figure 1. Internal schematic diagram D(2) G(1) Order codes VDSS RDS(on) max ID PW STWA20N95K5 950 V 0.330 Ω 17.5 A 250 W

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applicati

STWA20N95K5 General Description

This device is an N-channel Power MOSFET developed using SuperMESH™ 5 technology. This revolutionary, avalanche-rugged, high voltage Power MOSFET technology is based on an innovative proprietary vertical structure. The result is a drastic reduction in on-resistance and ultra low gate charge for app.

STWA20N95K5 Datasheet (580.87 KB)

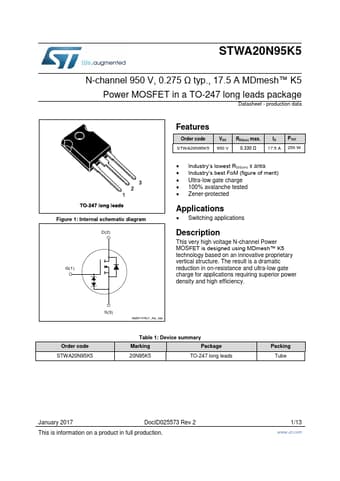

STWA20N95K5 Datasheet Preview — Preview of STWA20N95K5 PDF

Datasheet Details

Part number:

STWA20N95K5

Manufacturer:

STMicroelectronics ↗

File Size:

580.87 KB

Description:

N-channel mosfet.
