STWA20N95DK5

N-channel Power MOSFET

STWA20N95DK5 Features

* Order code VDS RDS(on) max. STW20N95DK5 STWA20N95DK5 950 V 330 mΩ

* Fast-recovery body diode

* Best RDS(on) x area

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely high dv/dt ruggedness ID 18 A G(1) S(3) Applica

STWA20N95DK5 General Description

These very high voltage N-channel Power MOSFETs are part of the MDmesh DK5 fast-recovery diode series. The MDmesh DK5 combines very low recovery charge (Qrr) and recovery time (trr) with an excellent improvement in RDS(on)
* area and one of the most effective switching behaviors, ideal for half .

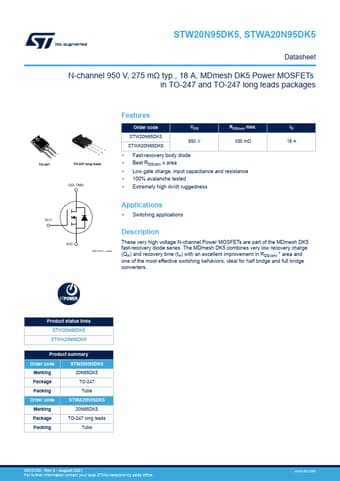

STWA20N95DK5 Datasheet (348.86 KB)

Preview of STWA20N95DK5 PDF

Datasheet Details

Part number:

STWA20N95DK5

Manufacturer:

STMicroelectronics ↗

File Size:

348.86 KB

Description:

N-channel power mosfet.
STW20N95DK5, STWA20N95DK5 Datasheet N-channel 950 V, 275 mΩ typ., 18 A, MDmesh DK5 Power MOSFETs in TO-247 and TO-247 long leads packages 3 2 1 TO-24.
