STWA65N60DM6, STW65N60DM6 Datasheet - STMicroelectronics

STWA65N60DM6 N-channel Power MOSFET

These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fast-recovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching.

STWA65N60DM6 Features

* Order code VDS RDS(on) max. ID STW65N60DM6 STWA65N60DM6 600 V 71 mΩ 46 A

* Fast-recovery body diode

* Lower RDS(on) per area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely high dv/dt rugg

STW65N60DM6-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STWA65N60DM6, STW65N60DM6. Please refer to the document for exact specifications by model.

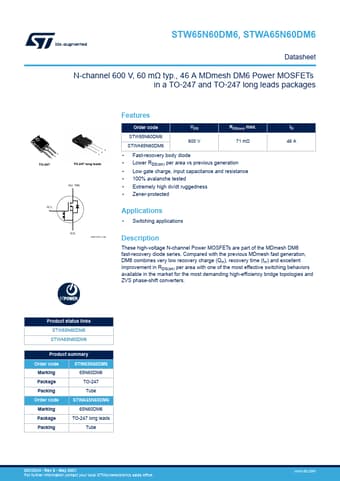

STWA65N60DM6 Datasheet Preview Page 2 STWA65N60DM6 Datasheet Preview Page 3

Datasheet Details

Part number:

STWA65N60DM6, STW65N60DM6

Manufacturer:

STMicroelectronics ↗

File Size:

331.92 KB

Description:

N-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: STWA65N60DM6, STW65N60DM6.
Please refer to the document for exact specifications by model.
