STWA65N65DM2AG Datasheet, Mosfet, STMicroelectronics

STWA65N65DM2AG Features

  • Mosfet Order code STWA65N65DM2AG VDS 650 V RDS(on) max. 50 mΩ ID 60 A PTOT 446 W
  • AEC-Q101 qualified
  • Fast-recovery body diode
  • Extremely low gate charge and in

PDF File Details

Part number:

STWA65N65DM2AG

Manufacturer:

STMicroelectronics ↗

File Size:

320.24kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This high-voltage N-channel Power MOSFET is part of the MDmesh DM2 fastrecovery diode series. It offers very low recovery charge (Qrr

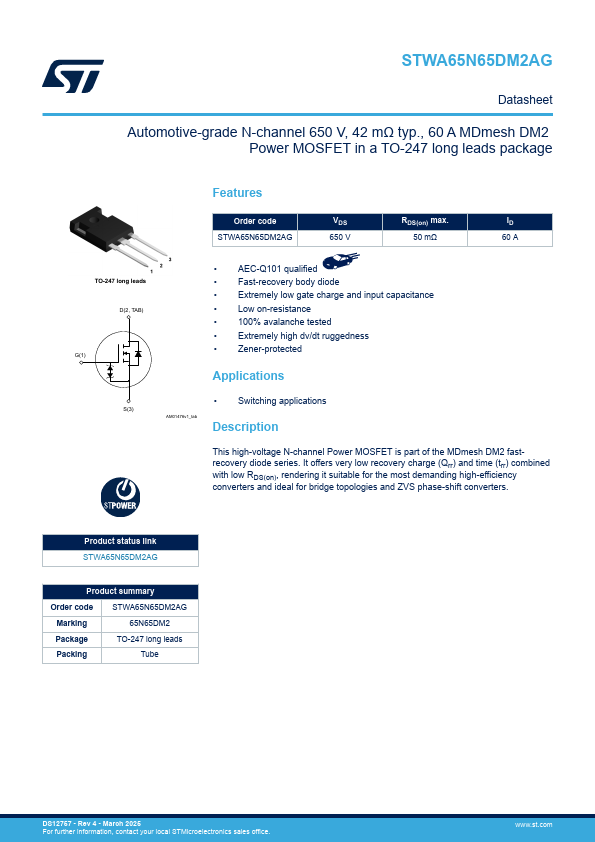

Datasheet Preview: STWA65N65DM2AG 📥 Download PDF (320.24kb)

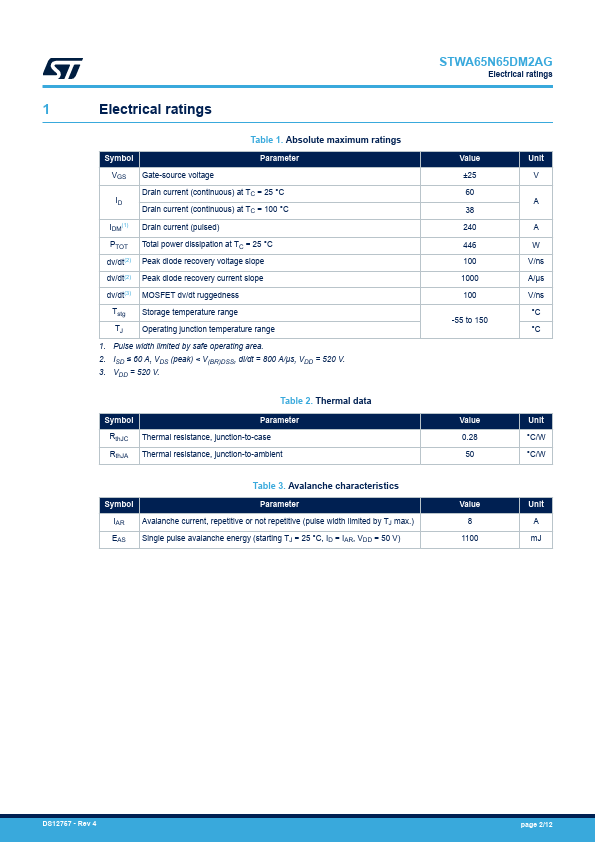

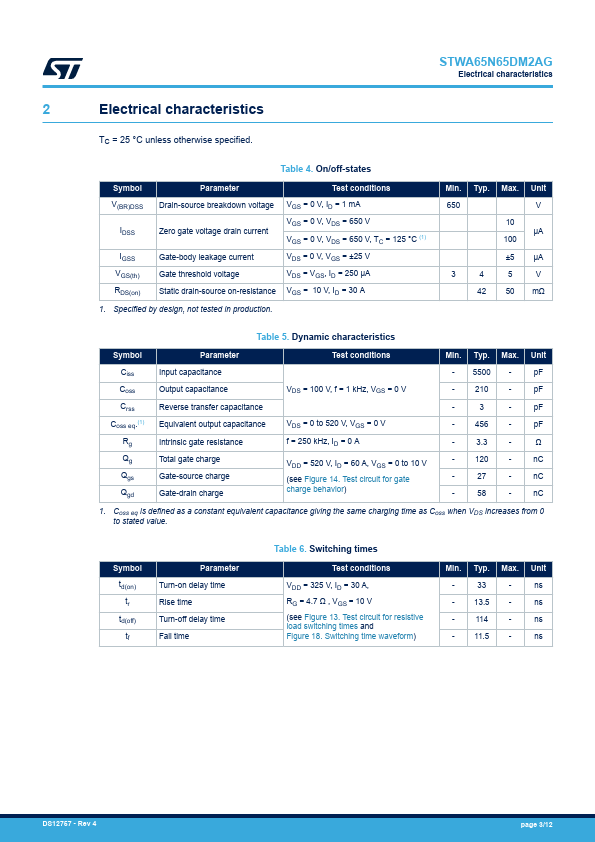

Page 2 of STWA65N65DM2AG Page 3 of STWA65N65DM2AG

STWA65N65DM2AG Application

  • Applications
  • Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh DM2 fastrecovery diode seri
