VND10BSP

ISO HIGH SIDE SMART POWER SOLID STATE RELAY

STMicroelectronics

VND10BSP General Description

The VND10BSP is a monolithic device made using SGS-THOMSON Vertical Intelligent Power Technology, intended for driving resistive or inductive loads with one side grounded. This device has two channels, and a common diagnostic. Built-in thermal shut-down protects the chip from over temperature and sh.

VND10BSP Datasheet (217.70 KB)

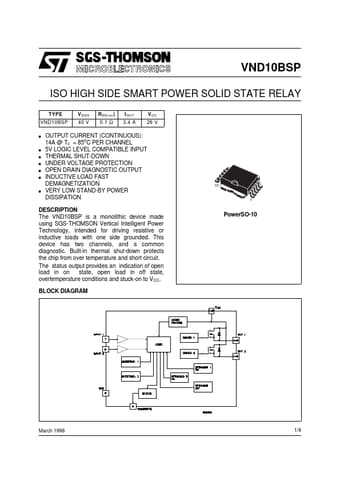

VND10BSP Datasheet Preview — Preview of VND10BSP PDF

Datasheet Details

Part number:

VND10BSP

Manufacturer:

STMicroelectronics ↗

File Size:

217.70 KB

Description:

Iso high side smart power solid state relay.
VND10BSP ISO HIGH SIDE SMART POWER SOLID STATE RELAY TYPE VND10BSP s V DSS 40 V R DS(on ) 0.1 Ω I OUT 3.4 A V CC 26 V s s s s s s OUTPUT CURREN.
