VND14NV04

fully autoprotected Power MOSFET

VND14NV04 Features

* TYPE VNB14NV04 VND14NV04 VND14NV04-1 VNS14NV04 RDS(on) 35 mΩ Ilim 12 A Vclamp 40 V

* Linear current limitation

* Thermal shutdown

* Short circuit protection

* Integrated clamp

* Low current drawn from input pin

* Diagnostic feedback through input pin

* ESD protection

VND14NV04 General Description

The VNB14NV04, VND14NV04, VND14NV04-1 and VNS14NV04 are monolithic devices made using STMicroelectronics VIPower™ M0 technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chi.

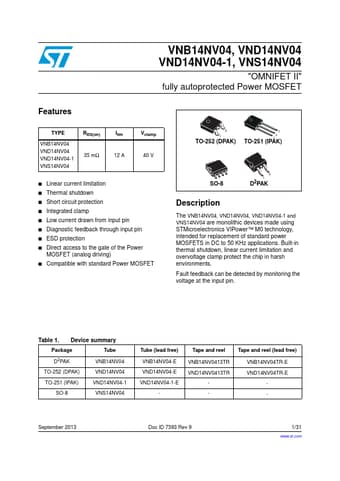

VND14NV04 Datasheet (1.06 MB)

Preview of VND14NV04 PDF

Datasheet Details

Part number:

VND14NV04

Manufacturer:

STMicroelectronics ↗

File Size:

1.06 MB

Description:

Fully autoprotected power mosfet.

📁 Related Datasheet

VND14NV04-1 - fully autoprotected Power MOSFET (STMicroelectronics)
VNB14NV04, VND14NV04 VND14NV04-1, VNS14NV04 OMNIFET II fully autoprotected Power MOSFET Features TYPE VNB14NV04 VND14NV04 VND14NV04-1 VNS14NV04 R.
