VND1NV04

fully autoprotected Power MOSFET

VND1NV04 Features

* During normal operation, the INPUT pin is electrically connected to the gate of the internal power MOSFET through a low impedance path. The device then behaves like a standard power MOSFET and can be used as a switch from DC up to 50KHz. The only difference from the user’s standpoint is that a small

VND1NV04 General Description

The VND1NV04, VNN1NV04, VNS1NV04 are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power BLOCK DIAGRAM MOSFETS from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the c.

VND1NV04 Datasheet (357.69 KB)

Preview of VND1NV04 PDF

Datasheet Details

Part number:

VND1NV04

Manufacturer:

STMicroelectronics ↗

File Size:

357.69 KB

Description:

Fully autoprotected power mosfet.

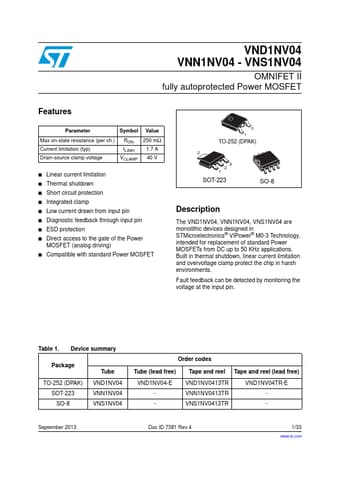

® VND1NV04 / VNN1NV04 / VNS1NV04 “OMNIFET II”: FULLY AUTOPROTECTED POWER MOSFET TYPE VND1NV04 VNN1NV04 VNS1NV04 RDS(on) 250 mΩ Ilim 1.7 A Vclamp .
