STS6604L Datasheet - SamHop

STS6604L Dual Enhancement Mode Field Effect Transistor

Green Product STS6604L Ver 1.0 S a mHop Microelectronics C orp. Dual Enhancement Mode Field Effect Transistor ( N and P Channel ) PRODUCT SUMMARY (N-Channel) V DSS 20 PRODUCT SUMMARY (P-Channel) V DSS -20V ID 4A R DS(ON) (m Ω) Max 60 @ VGS=4.5V ID -2.5A R DS(ON) (m Ω) Max 138 @ VGS=-4.5V 190 @ VGS=-2.5V 75 @ VGS=2.5V SOT 26 Top View D1 D2 G1 S2 G2 1 2 3 6 5 4 D1 S1 D2 G1 G2 S1 S2 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG .

STS6604L Datasheet (240.14 KB)

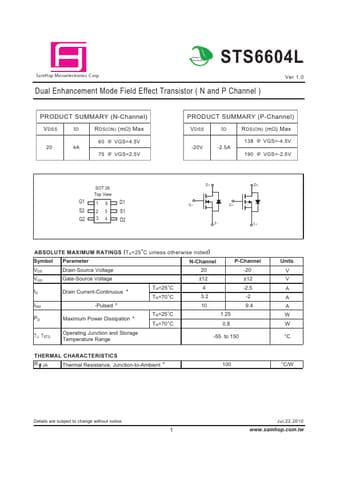

Preview of STS6604L PDF

Datasheet Details

Part number:

STS6604L

Manufacturer:

SamHop

File Size:

240.14 KB

Description:

Dual enhancement mode field effect transistor.
