K4E660812E - (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out

This page provides the datasheet information for the K4E660812E, a member of the K4E640812E (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out family.

Datasheet Summary

Description

This is a family of 8,388,608 x 8 bit Extended Data Out Mode CMOS DRAMs.

Extended Data Out Mode offers high speed random access of memory cells within the same row.

Refresh cycle(4K Ref.

Features

  • of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 8Mx8 EDO Mode DRAM family is fabricate d using Samsung ′s advanced CMOS process to realize high band-width, low power consumption and high reliability.

📥 Download Datasheet

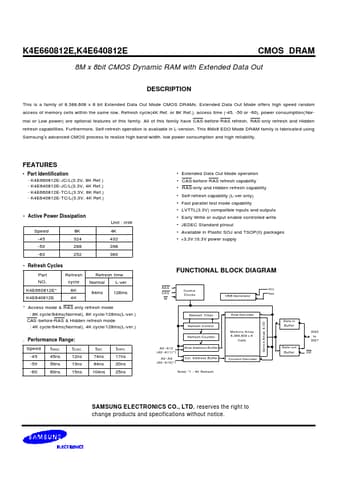

Datasheet preview – K4E660812E

Datasheet Details

Part number K4E660812E
Manufacturer Samsung semiconductor
File Size 190.72 KB
Description (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out
Datasheet download datasheet K4E660812E Datasheet
Additional preview pages of the K4E660812E datasheet.

📁 Similar Datasheet

Other Datasheets by Samsung semiconductor
  • K4E660412E - (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM
  • K4E640412E - (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM
  • K4E640812E - (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out

Full PDF Text Transcription

Click to expand full text
K4E660812E,K4E640812E CMOS DRAM 8M x 8bit CMOS Dynamic RAM with Extended Data Out DESCRIPTION This is a family of 8,388,608 x 8 bit Extended Data Out Mode CMOS DRAMs. Extended Data Out Mode offers high speed random access of memory cells within the same row. Refresh cycle(4K Ref. or 8K Ref.), access time (-45, -50 or -60), power consumption( Normal or Low power) are optional features of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 8Mx8 EDO Mode DRAM family is fabricate d using Samsung ′s advanced CMOS process to realize high band-width, low power consumption and high reliability. FEATURES • Part Identification - K4E660812E-JC/L(3.3V, 8K Ref.
