K4E640412E - (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM

This page provides the datasheet information for the K4E640412E, a member of the K4E660412E (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM family.

Datasheet Summary

Description

This is a family of 16,777,216 x 4 bit Extended Data Out Mode CMOS DRAMs.

Extended Data Out Mode offers high speed random access of memory cells within the same row.

Refresh cycle(4K Ref.

Features

  • of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 16Mx4 EDO Mode DRAM family is fabricated using Samsung′s advanced CMOS process to realize high band-width, low power consumption and high reliability.

📥 Download Datasheet

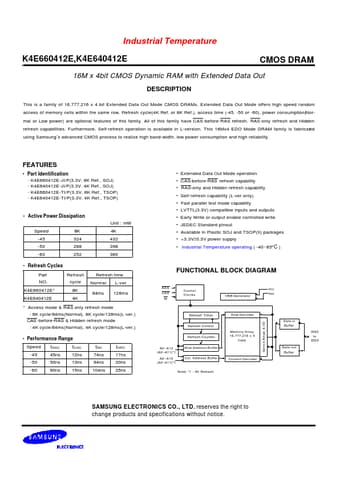

Datasheet preview – K4E640412E

Datasheet Details

Part number K4E640412E
Manufacturer Samsung semiconductor
File Size 230.45 KB
Description (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM
Datasheet download datasheet K4E640412E Datasheet
Additional preview pages of the K4E640412E datasheet.

📁 Similar Datasheet

Other Datasheets by Samsung semiconductor
  • K4E640812E - (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out
  • K4E660412E - (K4E640412E / K4E660412E) 16M x 4bit CMOS Dynamic RAM
  • K4E660812E - (K4E640812E / K4E660812E) 8M x 8bit CMOS Dynamic RAM with Extended Data Out

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Industrial Temperature K4E660412E,K4E640412E CMOS DRAM 16M x 4bit CMOS Dynamic RAM with Extended Data Out DESCRIPTION This is a family of 16,777,216 x 4 bit Extended Data Out Mode CMOS DRAMs. Extended Data Out Mode offers high speed random access of memory cells within the same row. Refresh cycle(4K Ref. or 8K Ref.), access time (-45, -50 or -60), power consumption(Normal or Low power) are optional features of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 16Mx4 EDO Mode DRAM family is fabricated using Samsung′s advanced CMOS process to realize high band-width, low power consumption and high reliability.
