Datasheet Details
- Part number
- K4S560832D
- Manufacturer
- Samsung semiconductor
- File Size
- 118.69 KB
- Datasheet
- K4S560832D_Samsungsemiconductor.pdf
- Description
- 256Mbit SDRAM 8M x 8bit x 4 Banks Synchronous DRAM LVTTL
K4S560832D Description

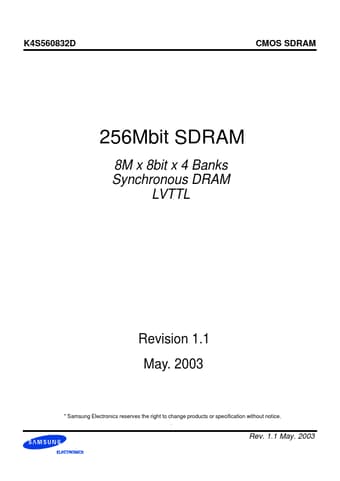

K4S560832D CMOS SDRAM 256Mbit SDRAM 8M x 8bit x 4 Banks Synchronous DRAM LVTTL Revision 1.1 May.2003 * Samsung Electronics reserves the right.
The K4S560832D is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 8,392,608 words by 8bits, fabricated with SAMSUNG's high pe.
K4S560832D Features
* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are
K4S560832D Applications
* ORDERING INFORMATION
Max Freq. 133MHz(CL=2) 133MHz(CL=3) 100MHz(CL=2) 100MHz(CL=3) LVTTL 54pin TSOP(II) Interface Package
FUNCTIONAL BLOCK DIAGRAM
I/O Control
LWE LDQM
Data Input Register
Bank Select 8M x 8 Sense AMP 8M x 8 8M x 8 8M x 8 Refresh Counter
Output Buffer
Row Decoder
Row Buffer
