Datasheet Details
- Part number
- K4S561632B
- Manufacturer
- Samsung semiconductor
- File Size
- 131.62 KB
- Datasheet
- K4S561632B_Samsungsemiconductor.pdf
- Description
- 256Mbit SDRAM 4M x 16bit x 4 Banks Synchronous DRAM LVTTL
K4S561632B Description

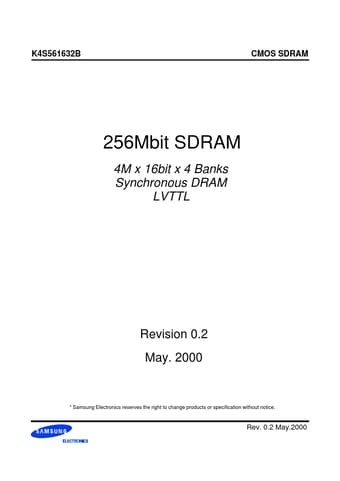

K4S561632B CMOS SDRAM 256Mbit SDRAM 4M x 16bit x 4 Banks Synchronous DRAM LVTTL Revision 0.2 May.2000 * Samsung Electronics reserves the righ.
The K4S561632B is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 words by 16 bits, fabricated with SAMSUNG's high.
K4S561632B Features
* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are
K4S561632B Applications
* ORDERING INFORMATION
Part No. K4S561632B-TC/L75 K4S561632B-TC/L1H K4S561632B-TC/L1L Max Freq. 133MHz(CL=3) 100MHz(CL=2) 100MHz(CL=3) LVTTL Interface Package 54pin TSOP(II)
FUNCTIONAL BLOCK DIAGRAM
I/O Control
LWE LDQM
Data Input Register
Bank Select 4M x 16 Sense AMP 4M x 16 4M x 16 4M x 16 R
