K6R4004V1D, 1Mx4 Bit High Speed Static RAM

K6R4004V1D Document Title 1Mx4 Bit High Speed Static RAM(3.3V Operating).Operated at Commercial and Industrial Temperature Ranges.PRELIMINARY CMOS .
The K6R4004V1D is a 4,194,304-bit high-speed Static Random Access Memory organized as 1,048,576 words by 4 bits.

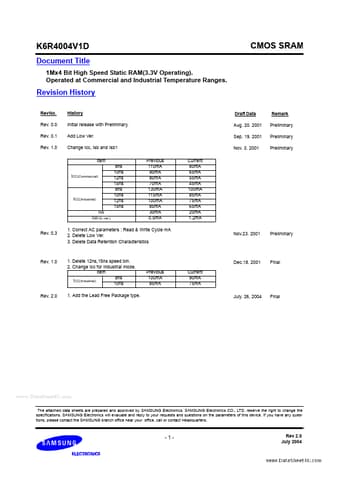

datasheet Preview Page 1 from Datasheet4u.com

K6R4004V1D_Samsungsemiconductor.pdf

K6R4004V1D Datasheet Preview — Preview of K6R4004V1D PDF

Datasheet Details

Part number:

K6R4004V1D

Manufacturer:

Samsung semiconductor

File Size:

248.36 KB

Description:

1Mx4 Bit High Speed Static RAM

Features

* Fast Access Time 8,10ns(Max. )
* Low Power Dissipation Standby (TTL) :20mA(Max. ) (CMOS) : 5mA(Max. ) Operating K6R4004V1D-08: 80mA(Max. ) K6R4004V1D-10: 65mA(Max. )
* Single 3.3±0.3V Power Supply
* TTL Compatible Inputs and Outputs
* Fully Static Operation - No

Applications

* The K6R4004V1D is packaged in a 400 mil 32-pin plastic SOJ. PIN CONFIGURATION(Top View) A0 A1 A2 A3 A4 CS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 A19 A18 A17 A16 A15 OE FUNCTIONAL BLOCK DIAGRAM Clk Gen. A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 I/O1~I/O4 I/O1 Vcc Vss 26 I/O4 SOJ 25 24 V
