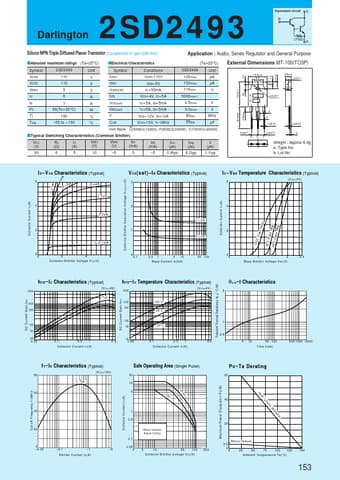

2SD2493
Sanken ↗ electric
25.12 KB
Silicon npn transistor.
Equivalent circuit
C
Darlington
sAbsolute maximum ratings (Ta=25°C)
Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SD2493 110 110 5 6 1 60(Tc=25°C) 150
