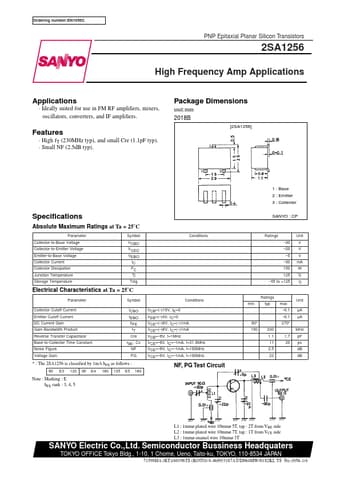

* High fT (230MHz typ), and small Cre (1.1pF typ).
* Small NF (2.5dB typ). Package Dimensions unit:mm 2018B [2SA1256] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector
2SA1256
Sanyo Semicon Device
161.51 KB
Pnp epitaxial planar silicon transistors.
Ordering number:EN1056C
PNP Epitaxial Planar Silicon Transistors
2SA1256
High Frequency Amp Applications
Applications
* Ideally suited for use i.
