Part number:
2SA1258
Manufacturer:
Sanyo Semicon Device
File Size:
41.37 KB
Description:
Pnp/npn epitaxial planar silicon darlington transistors.
* High fT.
* High switching speed.

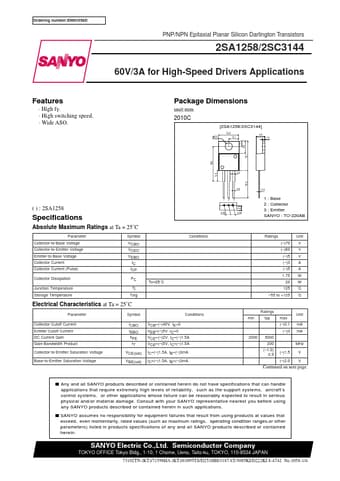

* Wide ASO. Package Dimensions unit:mm 2010C [2SA1258/2SC3144] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 18.0 5.6 1.2 2.7 14.0 ( ) : 2SA1258 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit
2SA1258
Sanyo Semicon Device
41.37 KB
Pnp/npn epitaxial planar silicon darlington transistors.
