2SA1257 PNP/NPN Epitaxial Planar Silicon Transistors

2SA1257 Description

Ordering number:ENN1057C PNP/NPN Epitaxial Planar Silicon Transistors 2SA1257/2SC3143 High-Voltage Switching, AF Power Amp, 100W Output Predriver App.

2SA1257 Features

* Very small-sized package permitting the 2SA1257/ 2SC3143-applied sets to be made small and slim.
* High breakdown voltage (VCEO≥160V).
* Small output capacitance. Package Dimensions unit:mm 2018B [2SA1257/2SC3143] 0.4 3 0.16 0 to 0.1 1.5 0.5 2.5 0.5 1 0.95 0.95 2 1.9 2.9 0.8 1.1

📥 Download Datasheet

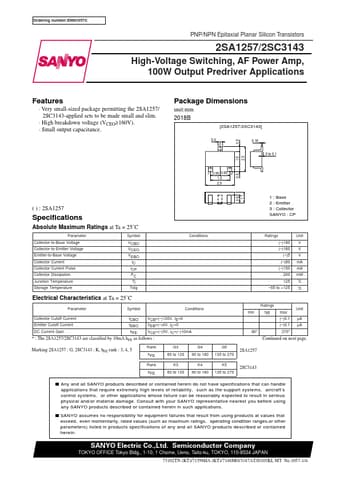

Preview of 2SA1257 PDF
