2SD2280 PNP/NPN Epitaxial Planar Silicon Transistors

2SD2280 Description

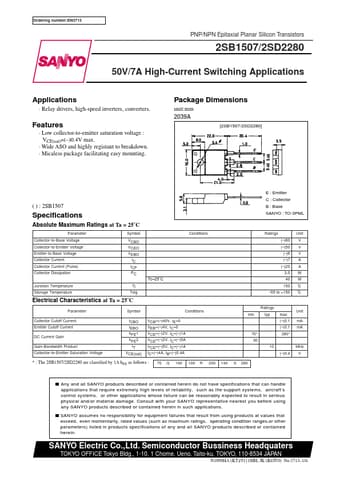

Ordering number:EN3713 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1507/2SD2280 50V/7A High-Current Switching Applications Applications * Re.

2SD2280 Features

* Low collector-to-emitter saturation voltage : VCE(sat)=(
* )0.4V max.
* Wide ASO and highly registant to breakdown.
* Micaless package facilitating easy mounting. Package Dimensions unit:mm 2039A [2SB1507/2SD2280] ( ) : 2SB1507 Specifications E : Emitter C : Collector B : Base

2SD2280 Applications

* Applications
