2SJ612 - Ultrahigh-Speed Switching Applications

2SJ612 Description

www.DataSheet4U.com Ordering number : ENN7178A 2SJ612 P-Channel Silicon MOSFET 2SJ612 Ultrahigh-Speed Switching Applications Preliminary .

2SJ612 Features

* Package Dimensions unit : mm 2062A [2SJ612] 4.5 1.6 1.5 Low ON-resistance. Ultrahigh-speed switching. 2.5V drive. 0.5 3 1.5 2 3.0 1 1.0 0.4 2.5 4.25max 0.4 (Bottom view) 0.75 1 : Gate 2 : Drain 3 : Source SANYO : PCP Specifications Absolute Maximum Rating

📥 Download Datasheet

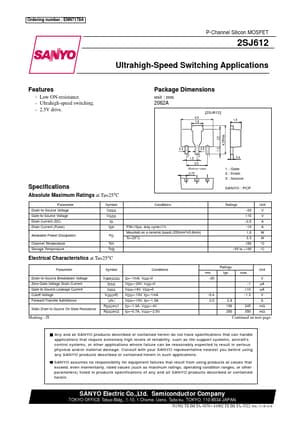

Preview of 2SJ612 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SJ612
Manufacturer
Sanyo Semicon Device
File Size
61.80 KB
Datasheet
2SJ612_SanyoSemiconDevice.pdf
Description
Ultrahigh-Speed Switching Applications
