Part number:
2SJ603
Manufacturer:
NEC
File Size:
115.96 KB
Description:
Mos field effect transistor.

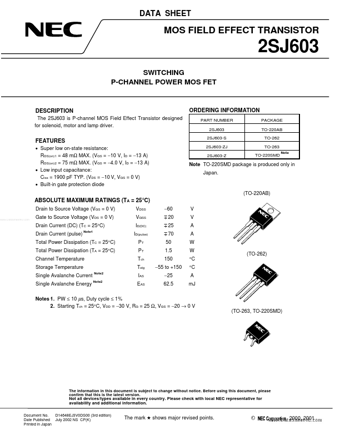

* Super low on-state resistance: RDS(on)1 = 48 mΩ MAX. (VGS =
* 10 V, ID =
* 13 A) RDS(on)2 = 75 mΩ MAX. (VGS =
* 4.0 V, ID =
* 13 A)
* Low input capacitance: Ciss = 1900 pF TYP. (VDS =
* 10 V, VGS = 0 V)
* Built-in gate protection diode No
2SJ603
NEC
115.96 KB
Mos field effect transistor.
