LC72700E - Mobile FM Multiplex Broadcast Receiver LSI

Datasheet Summary

Description

Pin No.

Features

Delay detection scheme using a 1T delay.
Built-in error correction function using a 2T delay.
Digital PLL clock regeneration.
Block and frame synchronization detection with a settable synchronization protection count.
Settable block identifier code (BIC) detection precision.
Error correction using (272,190) codes.
Built-in frame memory for product codes.
Support for both serial and parallel data I/O.
Package LC727.

Datasheet Details

Part number	LC72700E
Manufacturer	Sanyo Semicon Device
File Size	200.25 KB
Description	Mobile FM Multiplex Broadcast Receiver LSI
Datasheet	LC72700E Datasheet
Additional preview pages of the LC72700E datasheet.

📁 Similar Datasheet

LC72717PW - Mobile FM Multiplex Broadcast (DARC) Receiver (ON Semiconductor)

LC72720YV - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)

LC72720YVS - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)

LC72722PM - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)

LC72722PMS - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)

LC72725KV - RDS(RBDS) Demodulation IC (ON Semiconductor)

LC72725KVS - RDS(RBDS) Demodulation IC (ON Semiconductor)

LC7207 - (LC7200 Series) C-MOS LSI (Sanyo)

LC720DUC-SCM1 - WUXGA TFT LCD (LG)

LC720DUQ-SCM2 - WUXGA TFT LCD (LG)

Full PDF Text Transcription

Click to expand full text

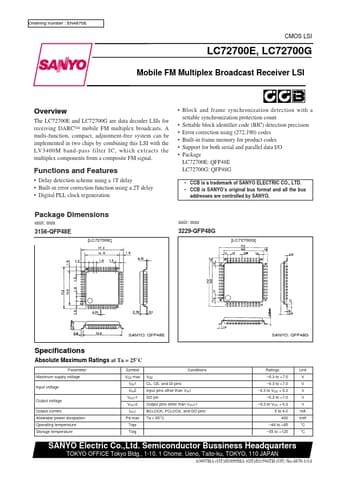

Ordering number : EN4870E CMOS LSI LC72700E, LC72700G Mobile FM Multiplex Broadcast Receiver LSI Overview The LC72700E and LC72700G are data decoder LSIs for receiving DARCTM mobile FM multiplex broadcasts. A multi-function, compact, adjustment-free system can be implemented in two chips by combining this LSI with the LV3400M band-pass filter IC, which extracts the multiplex components from a composite FM signal.
