LC72700G

Mobile FM Multiplex Broadcast Receiver LSI

LC72700G Features

* Delay detection scheme using a 1T delay

* Built-in error correction function using a 2T delay

* Digital PLL clock regeneration

* Block and frame synchronization detection with a settable synchronization protection count

* Settable block identifier code (BIC

LC72700G General Description

Pin No. 3 29 30 31 44 8 9 37 38 39 40 42 Symbol MSK CL CE DI RST TEST1 TEST2 PST PORT0 PORT1 PORT2 S/P 76 kHz MSK signal input CCB serial interface Clock input Data control input Data input Input System reset input pin (negative logic) Test pin 1 (normally connected to ground) Test pin 2 (normally .

LC72700G Datasheet (200.25 KB)

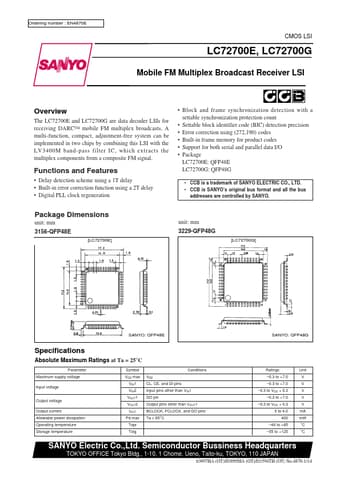

Preview of LC72700G PDF

Datasheet Details

Part number:

LC72700G

Manufacturer:

Sanyo Semicon Device

File Size:

200.25 KB

Description:

Mobile fm multiplex broadcast receiver lsi.
Ordering number : EN4870E CMOS LSI LC72700E, LC72700G Mobile FM Multiplex Broadcast Receiver LSI Overview The LC72700E and LC72700G are data decode.
