LC72707E - FM Multiplex Receiver

Datasheet Summary

Description

on page 8.

Number of Allowed BIC Errors This IC’s synchronization circuit operates by recognizing a 16-bit BIC code.

The number of allowed errors is the number of allowed error bits in the 16 bits used for BIC recognition.

Features

  • The protection count conditions are as follows.
  • Backward protection (unsynchronized, BLOCK = low) When the timing of the IC’s internal synchronization free-running counter matches that of.

📥 Download Datasheet

Datasheet preview – LC72707E

Datasheet Details

Part number LC72707E
Manufacturer Sanyo Semicon Device
File Size 160.68 KB
Description FM Multiplex Receiver
Datasheet download datasheet LC72707E Datasheet
Additional preview pages of the LC72707E datasheet.

📁 Similar Datasheet

  • LC72717PW - Mobile FM Multiplex Broadcast (DARC) Receiver (ON Semiconductor)
  • LC72720YV - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)
  • LC72720YVS - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)
  • LC72722PM - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)
  • LC72722PMS - Single-Chip RDS Signal-Processing System IC (ON Semiconductor)
  • LC72725KV - RDS(RBDS) Demodulation IC (ON Semiconductor)
  • LC72725KVS - RDS(RBDS) Demodulation IC (ON Semiconductor)
  • LC7207 - (LC7200 Series) C-MOS LSI (Sanyo)
  • LC720DUC-SCM1 - WUXGA TFT LCD (LG)
  • LC720DUQ-SCM2 - WUXGA TFT LCD (LG)
Other Datasheets by Sanyo Semicon Device
  • LC72700E - Mobile FM Multiplex Broadcast Receiver LSI
  • LC72700G - Mobile FM Multiplex Broadcast Receiver LSI
  • LC72701M - Serial Interface Dialler
  • LC72705E - FM Multiplex Receiver
  • LC72706E - FM Multiplex Receiver
  • LC72708E - FM Multiplex Broadcast Reception
  • LC72709E - FM Multiplex Reception
  • LC72709W - FM Multiplex Reception

Full PDF Text Transcription

Click to expand full text

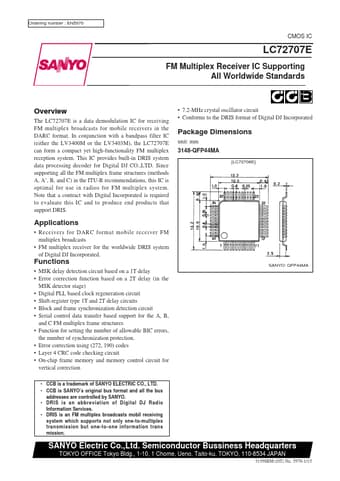

Ordering number : EN5970 CMOS IC LC72707E FM Multiplex Receiver IC Supporting All Worldwide Standards Overview The LC72707E is a data demodulation IC for receiving FM multiplex broadcasts for mobile receivers in the DARC format. In conjunction with a bandpass filter IC (either the LV3400M or the LV3403M), the LC72707E can form a compact yet high-functionality FM multiplex reception system. This IC provides built-in DRIS system data processing decoder for Digital DJ CO.,LTD. Since supporting all the FM multiplex frame structures (methods A, A’, B, and C) in the ITU-R recommendations, this IC is optimal for use in radios for FM multiplex system. Note that a contract with Digital Incorporated is required to evaluate this IC and to produce end products that support DRIS. • 7.
