LE25FW806 CMOS IC 8M-bit (1M X 8) Serial Flash Memory

Symbol SCK Pin Name Serial clock This pin controls the data input/output timing. The input data and addresses are latched synchronized to the rising edge of the serial clock, and the data is output synchronized to the falling edge of the serial clock. SI SO CS WP HOLD VDD VSS Serial data input Seria.

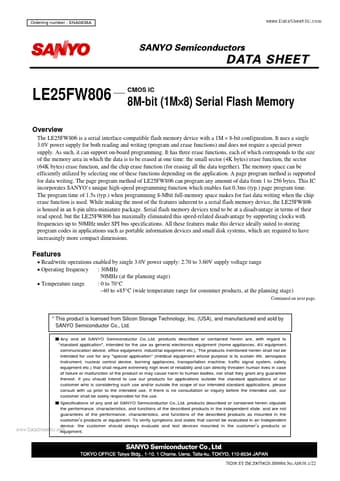

Ordering number : ENA0838A LE25FW806 Overview CMOS IC 8M-bit (1M×8) Serial Flash Memory The LE25FW806 is a serial interface-compatible flash memory device with a 1M × 8-bit configuration. It uses a single 3.0V power supply for both reading and writing (program and erase functions) and does not require a special power supply. As such, it can support on-board programming. It has three erase functions, each of which corresponds to the size of the memory area in which the data is to be erased at.

LE25FW806 Features

* inherent to a serial flash memory device, the LE25FW806 is housed in an 8-pin ultra-miniature package. Serial flash memory devices tend to be at a disadvantage in terms of their read speed, but the LE25FW806 has maximally eliminated this speed-related disadvantage by supporting clocks with frequenci
