LE25FW808 Datasheet - Sanyo Semicon Device

LE25FW808 - 8M-bit (1024K X 8) Serial Flash Memory

Symbol SCK SI (SIO0) SO (SIO3) CS WP (SIO2) HOLD (SIO1) VDD VSS Pin Name Serial clock Serial data input (Serial data I/O0) Serial data output (Serial data I/O3) Chip select This pin controls the data input/output timing.

To input data or addresses serially from MSB to LSB (Least Significant Bit).

(T

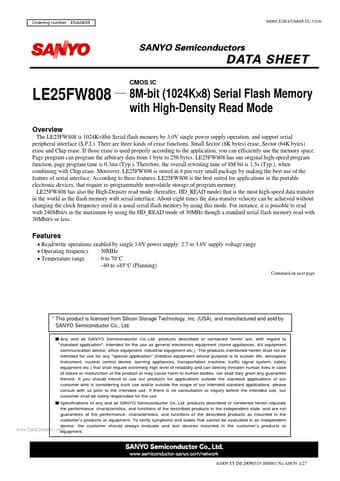

Ordering number : ENA0839 CMOS IC LE25FW808 Overview 8M-bit (1024K×8) Serial Flash Memory with High-Density Read Mode The LE25FW808 is 1024K×8bit Serial flash memory by 3.0V single power supply operation, and support serial peripheral interface (S.P.I.).

There are three kinds of erase functions, Small Sector (8K bytes) erase, Sector (64K bytes) erase and Chip erase.

If those erase is used properly according to the application, you can efficiently use the memory space.

Page program can progra

LE25FW808 Features

* LE25FW808 is the best suited for applications in the portable electronic devices, that require re-programmable nonvolatile storage of program memory. LE25FW808 has also the High-Density read mode (hereafter, HD_READ mode) that is the most high-speed data transfer in the world as the flash memory wi
