C3780 2SC3780

C3780 Description

Ordering number:EN2526 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1474/2SC3780 Ultrahigh-Definition CRT Display Video Output Applications Appli.

C3780 Features

* High fT (fT typ=800MHz).
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=3.0pF (NPN), 4.7pF (PNP).
* Complementary PNP and NPN types.
* Adoption of FBET process. Package Dimensions unit:mm 2010C [2SA1474/2SC3780] ( ) : 2SA1474 Specifications

C3780 Applications

* Applications
* Video Output.
* Color TV chroma output.

📥 Download Datasheet

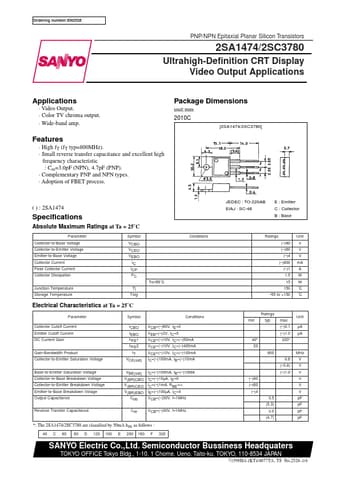

Preview of C3780 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3780
Manufacturer
Sanyo
File Size
124.18 KB
Datasheet
C3780-Sanyo.pdf
Description
2SC3780
