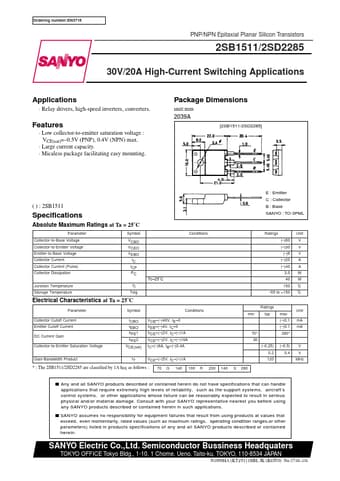

Ordering number:EN3716 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1511/2SD2285 30V/20A High-Current Switching Applications Applications * R.

D2285 Features

* Low collector-to-emitter saturation voltage : VCE(sat)=
* 0.5V (PNP), 0.4V (NPN) max.
* Large current capacity.
* Micaless package facilitating easy mounting. Package Dimensions unit:mm 2039A [2SB1511/2SD2285] ( ) : 2SB1511 Specifications E : Emitter C : Collector B : Base SAN
