LC895124 - CD-ROM Driver

Datasheet Summary

Features

  • On-chip SCSI interface (with built-in SCAM selection register).
  • Supports 8× playback - Using ×16 80-ns DRAMs.
  • Supports 4× playback - Using ×16 80-ns DRAMs or ×8 70-ns DRAMs.
  • Transfer rates: 10 MB/s (synchronous), 5 MB/s (asynchronous) using ×16 80-ns DRAMs.
  • 1.
  • Transfer rates: 8.467 MB/s (synchronous), 4.2336 MB/s (asynchronous) using ×8 70-ns DRAMs.
  • 2.
  • PSRAM can be used, providing 5 MB/s transfers in synchronous mode and 5 MB/s transfe.

📥 Download Datasheet

Datasheet preview – LC895124

Datasheet Details

Part number LC895124
Manufacturer Sanyo
File Size 84.14 KB
Description CD-ROM Driver
Datasheet download datasheet LC895124 Datasheet

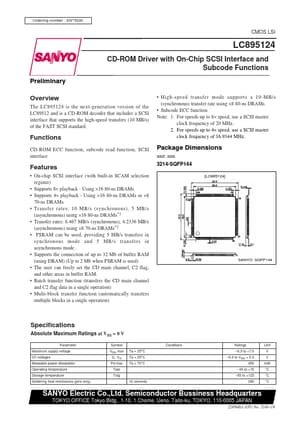

Additional preview pages of the LC895124 datasheet.

📁 Similar Datasheet

  • LC89510 - CMOS LSI (Sanyo Semicon Device)
  • LC89052T - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89052TA-E - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89057W-VF4A-E - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89057W-VF4A-E - Digital Audio Interface Transceiver (Sanyo Semicon Device)
  • LC89058W-E - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89058W-E - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89075W-H - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89075WA - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89091JA - Digital Audio Interface Receiver (ON Semiconductor)
Other Datasheets by Sanyo

Full PDF Text Transcription

Click to expand full text
Ordering number : EN*5240 CMOS LSI LC895124 CD-ROM Driver with On-Chip SCSI Interface and Subcode Functions Preliminary Overview The LC895124 is the next-generation version of the LC89512 and is a CD-ROM decoder that includes a SCSI interface that supports the high-speed transfers (10 MB/s) of the FAST SCSI standard. • High-speed transfer mode supports a 10-MB/s (synchronous) transfer rate using ×8 80-ns DRAMs • Subcode ECC function Note: 1. For speeds up to 8× speed, use a SCSI master clock frequency of 20 MHz. Note: 2. For speeds up to 4× speed, use a SCSI master clock frequency of 16.9344 MHz.
