LC895125Q - CD-ROM Driver

Datasheet Summary

Features

  • On-chip SCSI interface (with built-in SCAM selection register).
  • Supports 8× playback - Using ×16 80-ns DRAMs.
  • Supports 4× playback - Using ×16 80-ns DRAMs or ×8 70-ns DRAMs.
  • Transfer rates: 10 MB/s (synchronous), 5 MB/s (asynchronous) using ×16 80-ns DRAMs.
  • 1.
  • Transfer rates: 8.467 MB/s (synchronous), 4.2336 MB/s (asynchronous) using ×8 70-ns DRAMs.
  • 2.
  • Supports the connection of up to 32 Mb of buffer RAM (using DRAM).
  • The user.

📥 Download Datasheet

Datasheet preview – LC895125Q

Datasheet Details

Part number LC895125Q
Manufacturer Sanyo
File Size 113.42 KB
Description CD-ROM Driver
Datasheet download datasheet LC895125Q Datasheet
Additional preview pages of the LC895125Q datasheet.

📁 Similar Datasheet

  • LC89510 - CMOS LSI (Sanyo Semicon Device)
  • LC89052T - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89052TA-E - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89057W-VF4A-E - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89057W-VF4A-E - Digital Audio Interface Transceiver (Sanyo Semicon Device)
  • LC89058W-E - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89058W-E - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89075W-H - Digital Audio Interface Receiver (Sanyo Semicon Device)
  • LC89075WA - Digital Audio Interface Receiver (ON Semiconductor)
  • LC89091JA - Digital Audio Interface Receiver (ON Semiconductor)
Other Datasheets by Sanyo

Full PDF Text Transcription

Click to expand full text

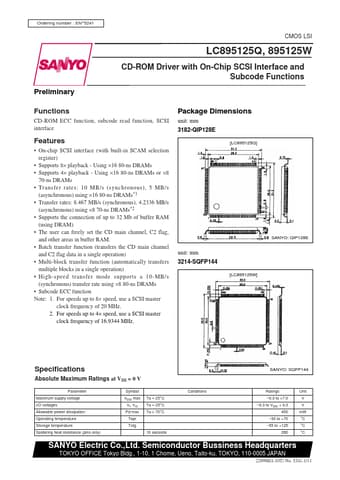

Ordering number : EN*5241 CMOS LSI LC895125Q, 895125W CD-ROM Driver with On-Chip SCSI Interface and Subcode Functions Preliminary Functions CD-ROM ECC function, subcode read function, SCSI interface Package Dimensions unit: mm 3182-QIP128E [LC895125Q] Features • On-chip SCSI interface (with built-in SCAM selection register) • Supports 8× playback - Using ×16 80-ns DRAMs • Supports 4× playback - Using ×16 80-ns DRAMs or ×8 70-ns DRAMs • Transfer rates: 10 MB/s (synchronous), 5 MB/s (asynchronous) using ×16 80-ns DRAMs*1 • Transfer rates: 8.467 MB/s (synchronous), 4.2336 MB/s (asynchronous) using ×8 70-ns DRAMs*2 • Supports the connection of up to 32 Mb of buffer RAM (using DRAM) • The user can freely set the CD main channel, C2 flag, and other areas in buffer RAM.
