2SB600 Datasheet, TRANSISTOR, SavantIC

PDF File Details

Part number:

2SB600

Manufacturer:

SavantIC

File Size:

135.31kb

Download:

📄 Datasheet

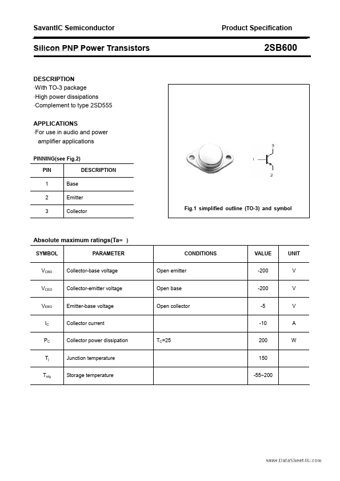

Description:

Silicon power transistor.

With TO-3 package

High power dissipations

Complement to type 2SD555 APPLICATIONS

For use in audio

2SB600 Application

• Applications
• For use in audio and power amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline

TAGS

2SB600

SavantIC
