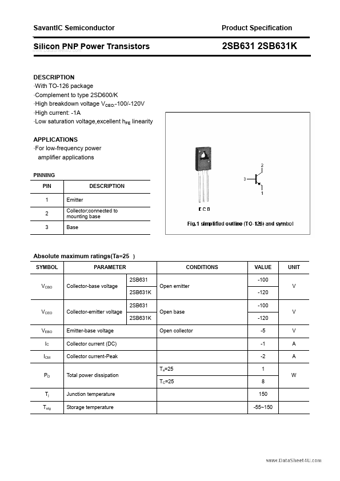

2SB631 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SB631

Manufacturer:

SavantIC

File Size:

187.88kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-126 package

Complement to type 2SD600/K

High breakdown voltage VCEO:-100/-120V

High curre

2SB631 Application

• Applications
• For low-frequency power amplifier applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION
