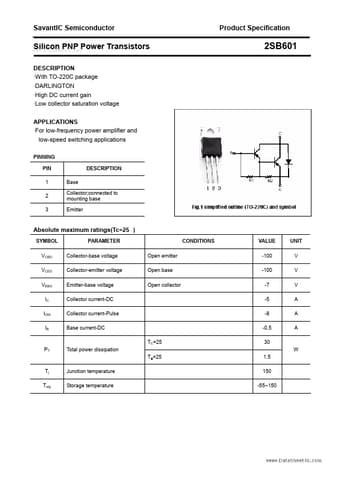

2SB601 Datasheet, TRANSISTOR, SavantIC

PDF File Details

Part number:

2SB601

Manufacturer:

SavantIC

File Size:

144.28kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-220C package

DARLINGTON

High DC current gain

Low collector saturation voltage APPLICATION

2SB601 Application

• Applications
• For low-frequency power amplifier and low-speed switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting
