2SC3181 Datasheet - SavantIC

2SC3181 SILICON POWER TRANSISTOR

*With TO-3P(I) package *Complement to type 2SA1264 APPLICATIONS *Power amplifier applications *Recommend for 55W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3P(I)) and symbol DES.

2SC3181_SavantIC.pdf

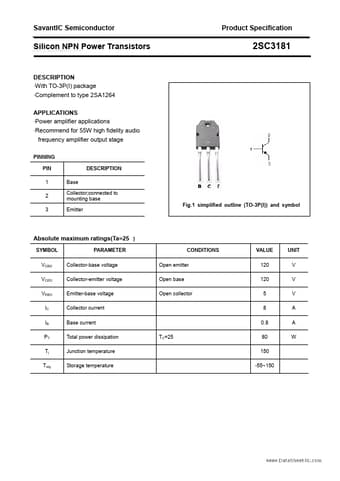

Preview of 2SC3181 PDF
2SC3181 Datasheet Preview Page 2 2SC3181 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3181

Manufacturer:

SavantIC

File Size:

194.37 KB

Description:

Silicon power transistor.
