2SD1163A

SILICON POWER TRANSISTOR

2SD1163A General Description

h TO-220 package
*Low collector saturation voltage APPLICATIONS
*TV horizontal deflection output, PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER 2SD1163 VCBO Collector-base voltage 2SD1163A 2SD1163 VCEO Coll.

2SD1163A Datasheet (125.43 KB)

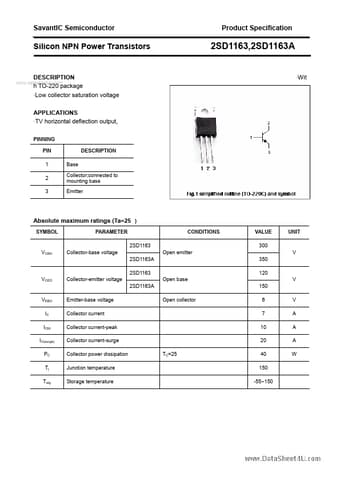

Preview of 2SD1163A PDF

Datasheet Details

Part number:

2SD1163A

Manufacturer:

SavantIC

File Size:

125.43 KB

Description:

Silicon power transistor.
