2SD1550 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

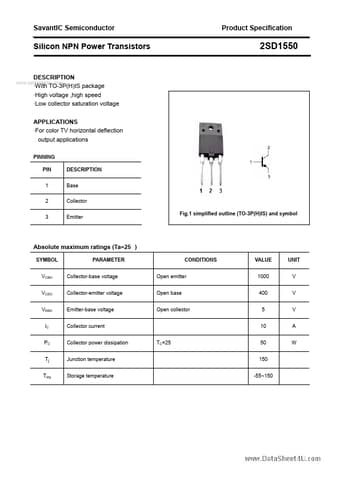

With TO-3P(H)IS package High voltage ,high speed Low collector saturation voltage APPLICATIONS For color TV horizontal deflection output applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol Absolute maximum ratings (T

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	2SD1550
Manufacturer	SavantIC
File Size	262.68 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SD1550 Datasheet
