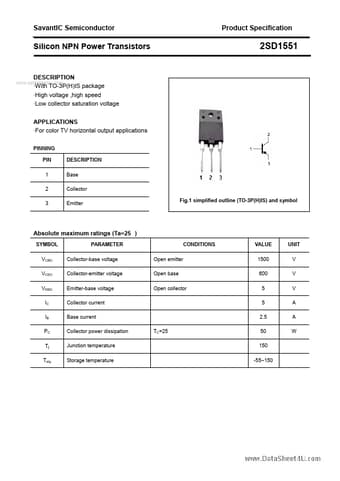

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1551
www.datasheet4u.com
DESCRIPTION ·With TO-3P(H)IS package ·High voltage ,high speed ·Low collector saturation voltage APPLICATIONS ·For color TV horizontal output applications
PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings (Ta=25 )
SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 1500 600 5 5 2.
