2SD1553

NPN Transistor

2SD1553 General Description


*High Breakdown Voltage- : VCBO= 1500V (Min)
*High Switching Speed
*Low Saturation Voltage
*Built-in Damper Diode
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*Designed for color TV horizontal output applications ABSOLUTE M.

2SD1553 Datasheet (210.17 KB)

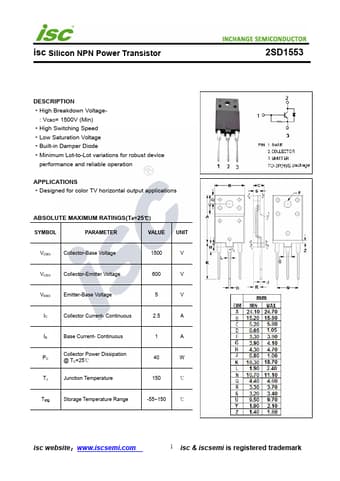

Preview of 2SD1553 PDF

Datasheet Details

Part number:

2SD1553

Manufacturer:

INCHANGE

File Size:

210.17 KB

Description:

Npn transistor.
